Skyranger SW

                         Performance Data


Dimensions / Operating weights and loading


Aircraft Length                                                                        5,90 m

Height to top of wing                                                              1,75 m

Wing span                                                                                  8,50 m

Wing area                                                                                  13,4 m2

Empty weight-ready to fly                                                    275 kg

Max. take-off weight (German Microlight)                     472,5 kg

Useful load                                                                                197,5 kg

Baggage load (max)                                                                20 kg

Structural load with MTOW 500 kg                                   +6/-4 g


Performance Data


Speed never exceed (Vne)                                                     200 km/h

Cruising speed                                                                          130-140 km/h

Speed for best rate of climb                                                  90 km/h

Best rate of climb (depending on engine/propeller)      3,5-6,5 m/s

Stall speed                                                                                  65 km/h

Best glide ratio @ 90 km/h                                                     9,1

Take-off distance                                                                      280 m

Landing distance                                                                      250 m


Endurance


Fuel capacity                                                                             60 l

Fuel consumption                                                                    10-15 l/h

Max. endurance                                                                       3,5 - 5 h


Sauer Engines

S1900UL (70hp), S2200UL (85hp), S2400UL (90hp)


Rotax Engines

Rotax 912 UL (80hp) Rotax 912 ULS (100hp)

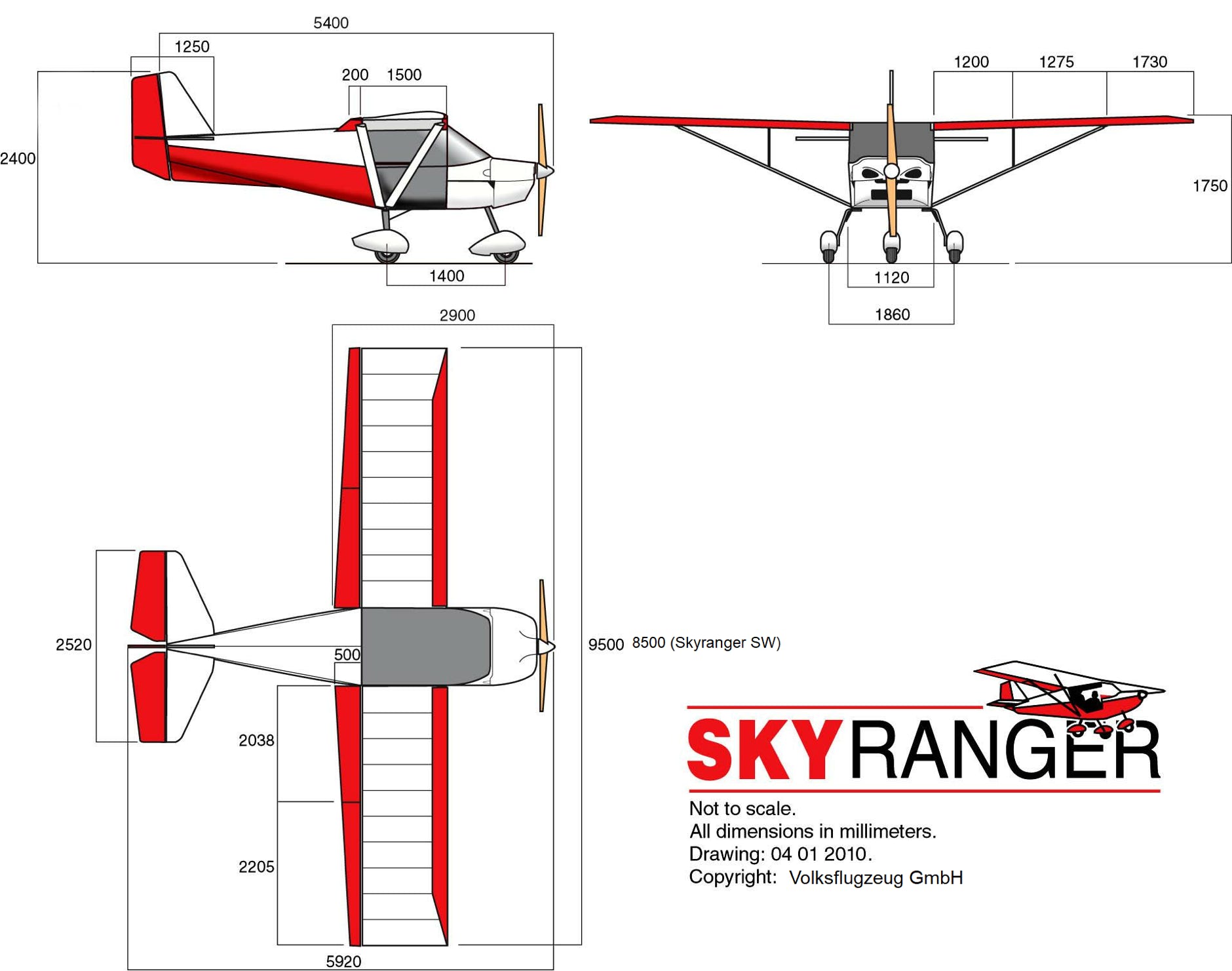

3 Dimension View
